RINGby Ringwood

The software, screen by screen

Every screen of the Ring command center

A full walkthrough of the running application — the dashboard, the live plant floor, batch and temperature control, the reporting suite, and every setup screen. Captured straight from the current build.

Shown in the app’s built-in Simulation Mode with synthetic live plant data — not a real plant.

Command center Plant floor — live tanks Batch & temperature control Shift management Reports & analytics Setup & configuration Help & onboarding

Command center · 2

Command center

One glance tells the operator whether the plant is healthy — green is normal, red needs attention.

System dashboard — Ring screen — System dashboardThe plant-floor command center: active batch, live KPIs, alarms and every tank on a single screen.

Process & alarms — Ring screen — Process & alarmsLive alarm list with first-response guidance — what each alarm means and what to do first.

Plant floor — live tanks · 5

Plant floor — live tanks

The real-time process picture: every storage, mix and use tank with live level, temperature and batch status.

Make-ready tank — Ring screen — Make-ready tankThe mixer with live batch progress, the running recipe step, and the full step table.

Storage tank group — Ring screen — Storage tank groupAll storage tanks side by side — fill level, temperature, formula and agitator state, live.

Use tank group — Ring screen — Use tank groupThe downstream use tanks feeding the corrugator, with status and live measurements.

TVC overview — Ring screen — TVC overviewTotal-Volume-Control tank status and the temperature-control link to every storage tank.

Viscometer — Ring screen — ViscometerOperator viscosity readings against the calibrated alarm band, with recent history.

Batch & temperature control · 3

Batch & temperature control

Start batches and drive temperature control from purpose-built, touch-friendly screens.

Batch start — Ring screen — Batch startPick a formula and target, review, and start a batch — with gentle confirmations.

TVC control — Ring screen — TVC controlPer-tank temperature-control setpoints and live heating/cooling status.

Use tank (MF 1) — Ring screen — Use tank (MF 1)A dedicated live view of an individual use tank and its valves and pumps.

Shift management · 3

Shift management

Digital shift handover replaces verbal and paper notes — nothing gets lost between crews.

Shift control — Ring screen — Shift controlCurrent shift, timings and crew — the hub for shift-based reporting.

Handoff notes — Ring screen — Handoff notesFree-text end-of-shift log so the next crew starts fully informed.

Handover summary — Ring screen — Handover summaryA read-only recap of the shift: batches run, alarms seen, and what's still running.

Reports & analytics · 16

Reports & analytics

A full reporting suite — including the money and equipment-effectiveness (OEE) reports the old system never had.

Batch history report — Ring screen — Batch history reportQuery any date range and export a formatted batch report, or send it straight to a printer.

Usage report — Ring screen — Usage reportIngredient and material usage over a chosen period.

Alarm history — Ring screen — Alarm historyThe full, searchable alarm record — preview, print or save as PDF.

Alarm analytics — Ring screen — Alarm analyticsWhich alarms fire most often, and how quickly they get acknowledged and resolved.

Insights — Ring screen — InsightsProduction, cost, yield and plant-health at a glance, with forecast and stock warnings.

Inventory report — Ring screen — Inventory reportIngredient inventory snapshots over time.

Formula report — Ring screen — Formula reportThe full recipe for every formula — steps, ingredients and preset amounts.

Shift consumption — Ring screen — Shift consumptionWhat each shift consumed and produced, for cost and performance comparison.

Data-entry report — Ring screen — Data-entry reportCustomisable per-screen data-entry logs over any date range.

Tank cleaning board — Ring screen — Tank cleaning boardCleaning status per tank — clean, due, or overdue — so nothing slips.

Tank history (process historian) — Ring screen — Tank history (process historian)Recorded temperature and fill-level history per tank, sampled every minute.

Alarm ↔ batch — Ring screen — Alarm ↔ batchEach alarm linked to the batch that was running when it fired.

Batch queue board — Ring screen — Batch queue boardThe planned production queue — what's running and what's next.

Downtime / OEE — Ring screen — Downtime / OEEDowntime events by reason and an equipment-effectiveness (OEE) view of plant performance.

Alarm summary — Ring screen — Alarm summaryA rolled-up summary of alarm activity for the period.

Database export — Ring screen — Database exportOne-click export of the underlying data — opens straight in Excel.

Setup & configuration · 10

Setup & configuration

Supervisor-level configuration for the plant, recipes, alarms, costs and connectivity.

Plant profileCommissioning profile for the plant — export and import in one place.

Email & alerts — Ring screen — Email & alertsRecipients, test send and delivery log for automatic email escalation.

Costs — Ring screen — CostsIngredient prices, currency and downtime rate — the inputs behind the money reports.

Legacy RS-360 import — Ring screen — Legacy RS-360 importBring your tank, ingredient, and recipe names across from the old system (RS-360).

Alarm playbook — Ring screen — Alarm playbookFirst-response guidance per alarm — meaning, first check and who to call.

Data-entry setup — Ring screen — Data-entry setupCustomise the operator data-entry field labels per screen.

Formula edit — Ring screen — Formula editEdit recipe steps, ingredients, amounts and mix times.

Inventory edit — Ring screen — Inventory editMaintain ingredient inventory levels.

Tank & group names — Ring screen — Tank & group namesName every tank and group so operators see plant-specific labels.

Connection diagnostics — Ring screen — Connection diagnosticsA live connection-diagnostics screen for commissioning.

Help & onboarding · 3

Help & onboarding

Built-in help and a manuals library, so operators are never stuck.

Manuals library — Ring screen — Manuals libraryThe plant's original manuals, on-screen and searchable.

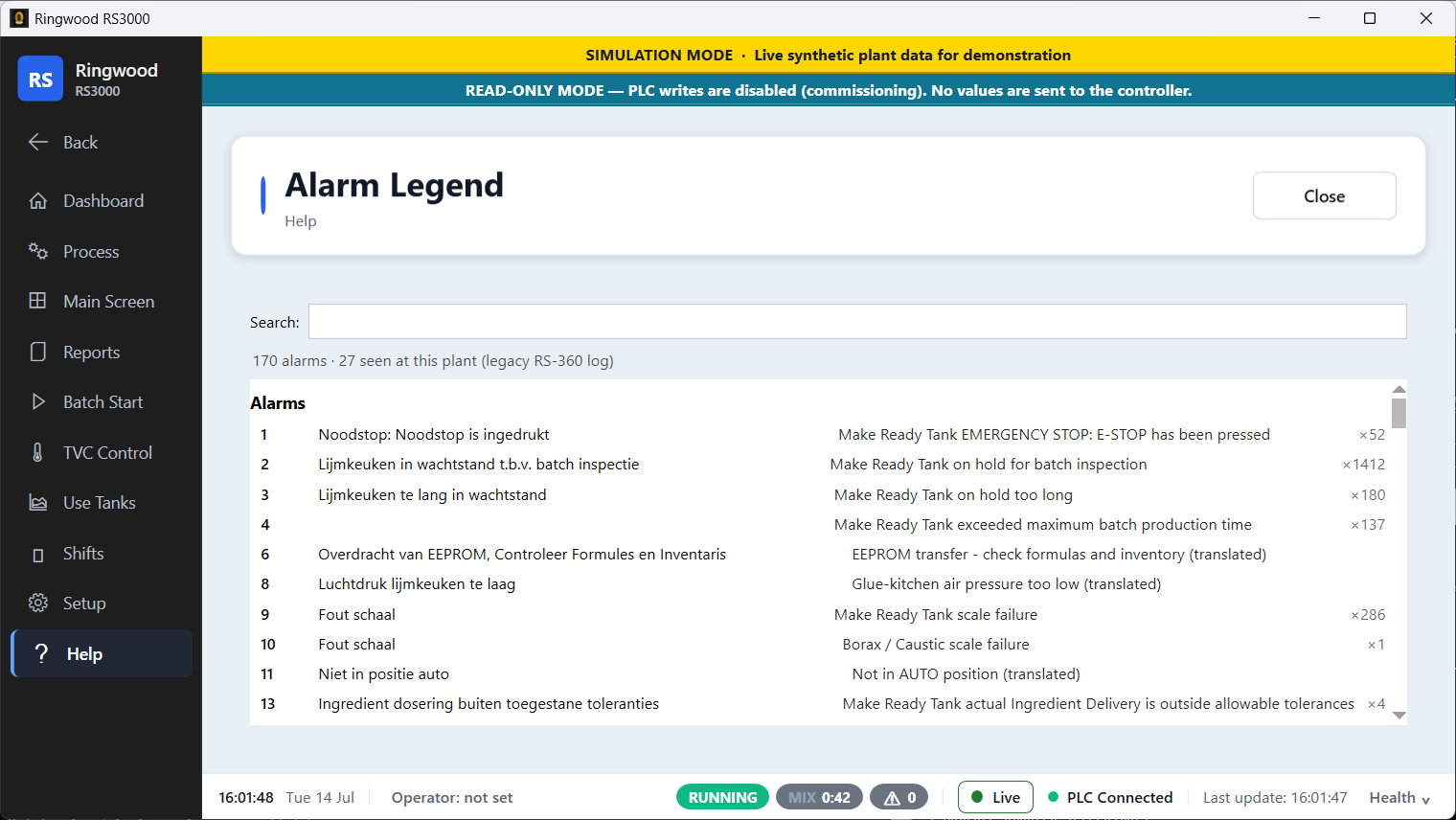

Alarm legend — Ring screen showing Dutch and English alarm text side by side — Alarm legend (Dutch/English)Every alarm in both languages — the plant's original Dutch text beside the English translation.

Contact & support — Ring screen — Contact & supportOne click to the people who can help.

Want to see these screens running on your own line?

Request a demo What you gain
